Parameter explorer (UI)

An interactive Gradio app to see how each parameter affects generation — sliders for the regime / shape / resolution / relaxation knobs, a live track grid, and the valid-yield stat.

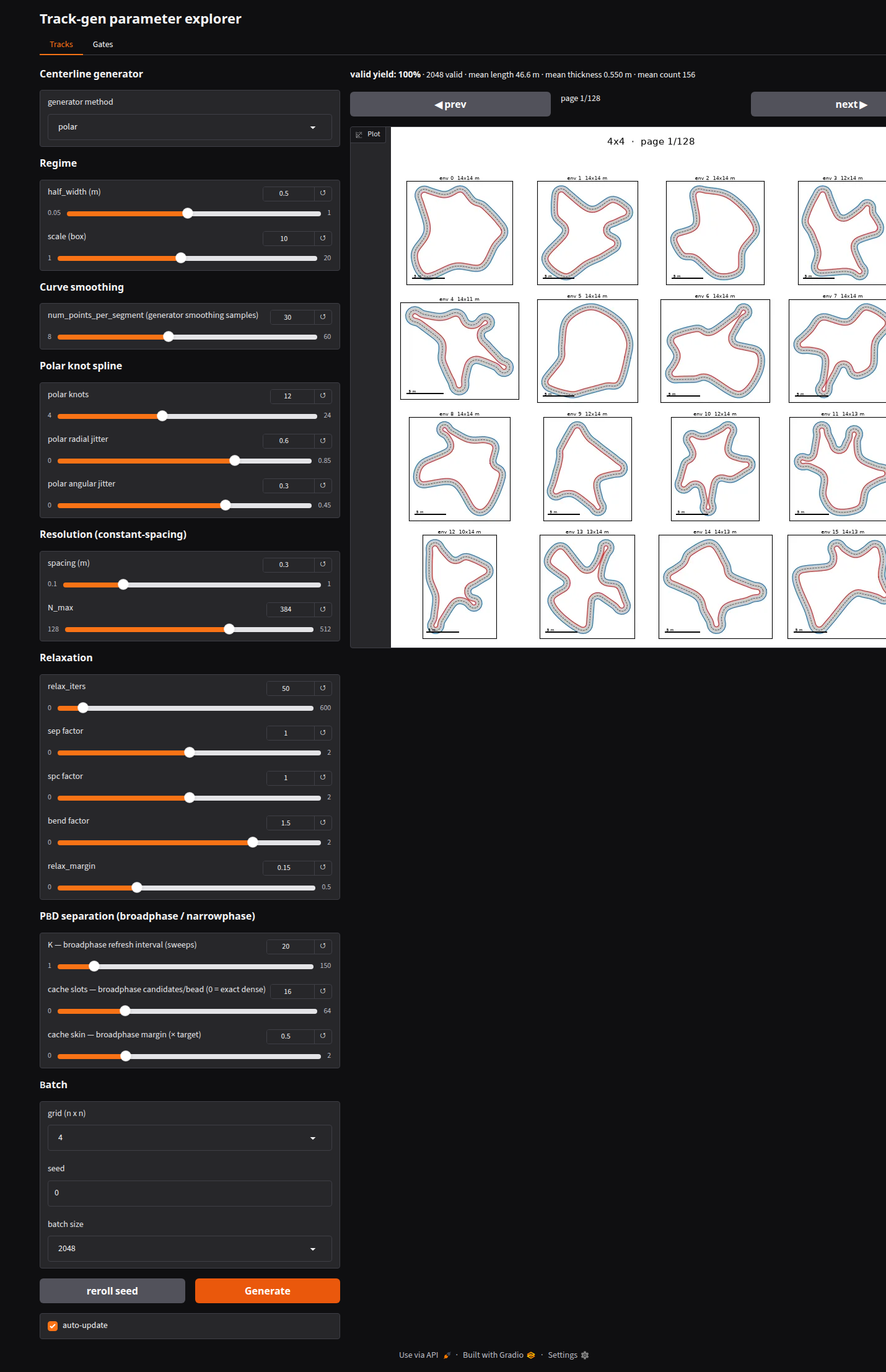

The Tracks tab: generator / regime / shape / resolution / relaxation controls on the left, a paged grid of freshly generated tracks on the right, and the valid-yield + mean-length / thickness / count stat line computed over the whole batch.

Launching

uv pip install -e ".[ui]"     # adds gradio
uv run python -m viz.param_explorer   # opens a local URL (default http://127.0.0.1:7860)

Controls

Controls are grouped:

• Centerline generator — method selector.

• Regime — width / box.

• Shape — corner count / rad / edgy / handle_clamp_frac.

• Polar knot spline.

• Voronoi graph cycle — voronoi_num_sites, layout, control points, variation.

• Checkpoint steering — checkpoint_count, turn/steer/lookahead, best-of-K, clip fallback.

• Resolution — spacing / N_max.

• Relaxation.

• Batch.

Output is always constant_spacing (the only mode): ``spacing`` sets the arc step (≈ 0.6*half_width) and ``N_max`` the per-track point cap. ``handle_clamp_frac`` trades Bézier-handle overshoot (the main self-crossing source) against corner roundness.

Batch size generates that many tracks (256–8192); the valid-yield % + mean length / thickness / count shown above the grid are computed over the whole batch for honest stats.

The grid shows one page of grid_n × grid_n tracks — ◀ prev / next ▶ pages through the batch without regenerating. Invalid tracks get a red title.

Auto-update (on) re-generates as you change a control; for heavy settings (large batch × high relax_iters) untick it and use Generate. Reroll draws fresh seeds.

Gates tab

A second tab generates gate sequences instead of tracks. Controls are grouped:

• Gate generator — method selector and ordering (choices follow the selected generator).

• Gate layout — gate_width (full gate opening) and scale (pre-collision layout size).

• Gate collisions — gate_radius, gate_solve_iters, and show raw anchors (forces gate_solve_iters=0 to inspect anchors before the collision solve). Center spacing target is 2 * gate_radius.

• Generator-specific sampling — point-family (Bezier/Hull), Polar, Voronoi, or Checkpoint controls, shown for the selected generator.

• Batch — grid (n×n), seed, batch size; the stat line reports valid-yield and gate counts over the whole batch, and ◀ prev / next ▶ pages through the batch without regenerating.
